Engineering Strip: Constant current 2835 120 leds/m, 4oz pcb,15m/roll

What’s the most importance of DC led strip for engineering project ?

It may be Luminous , lighting effect , and installation way.

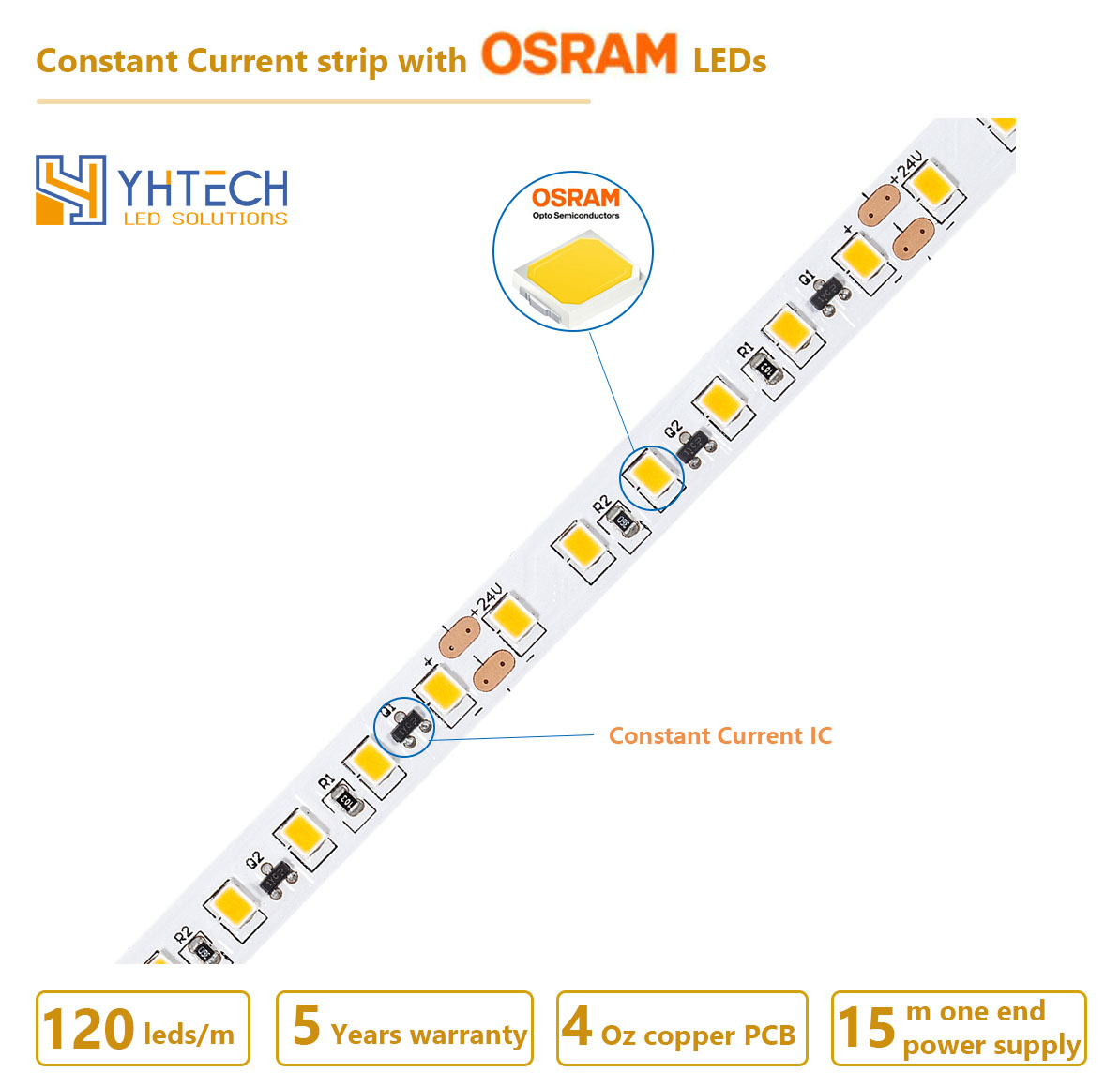

This type: 2835 120 leds/m , constant current circuit , 4oz pcb is to solve this problem.

Luminous: 120 leds/m , if it needs 15m with one end power supply , it is best to do 10w/m , if both ends power supply , 12w/m could be adviced.

lighting effect: 120 leds/m is better for slim aluminum profile , linear lighting , some area without spot , smoothly looking.

The most advantage: Better for power installation , for regular strip is 5m/roll , if one end power supply , 5m is adviced , because of voltage drop and the pcb can’t support the big current of longer length . how can it connect 15m with one end power supply ? Constant current and 4oz pcb are the main factor. When installing led strip in engineering project , it needs long length over 5m , but it’s a little difficult or inconvenient to install transformer , this type led strip is much more suitable for it.

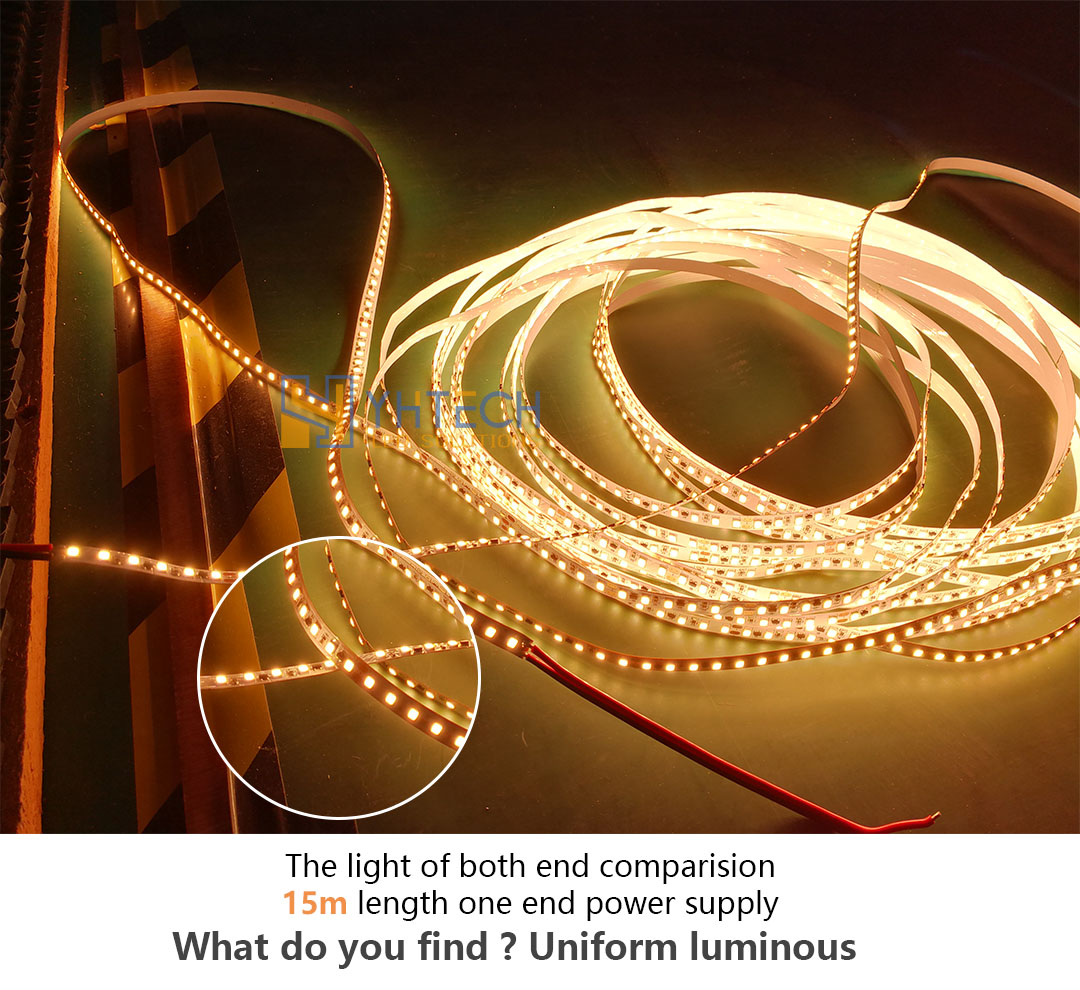

Constant current circuit makes the whole strip lighting uniform , it is really important for some high demand project .

For leds choosing , not only Chinese led chips , but also Osram , Samsung , Cree , etc.

More special led strip , pls visit www.yhtled.com or contact sales@yhtled.com directly.
