Project Description

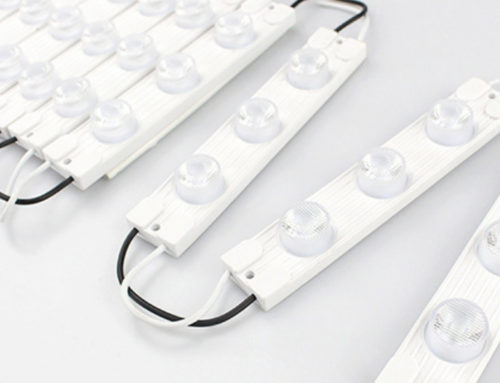

NM Series LED Module

YHNM1L 0.36W

LED Qty: 1 leds/pcs

Power: 0.36w

Voltage: DC 12v

Color option: 2700K/2800-3200K/4000-4500K/6000-6500K/10000-12000K

Lumens: 36 lm (6000K)

Description

LED injection module with widely viewing angle , tiny dimension , high brightness , it is suitable for mini signage , narrow space , easy to install .

Parameter

 Power   0.36W/PCS
 LED Type   SMD2835
 LED Qty   1 leds
 Beam Angle   160°
 Luminous Flux (LM/PCS)   36LM
 Size   28*18*6mm
 Material   ABS+Aluminum
 Input Voltage   12VDC
 CCT(K)   2700-2900K/2800-3200K/4000-4500K/5000-5500K/6000-6500K/10000-12000K/R/G/B/Y
 IP Rating   IP65

Drawing

Packing Details

Application

• Signage
• Lighting Box
• Advertising signage
• Backlit panel
• Outdoor or indoor signage
• lighting letter
• mirror light
• Decorating for building

led signage , advertising light box , led module backlit
