Project Description

Special Flexible LED Strip

high view angle flexible led strip yhtech

300° view angle led strip 2835+3014 side view

LED Qty: 180 leds/m

Power: 16w/m

Voltage: DC 12v

Color option: 2700K/2800-3200K/4000-4500K/6000-6500K/10000-12000K/Red/Green/Blue/Yellow

Lumens: 1440 lm/m (6000K)

Description

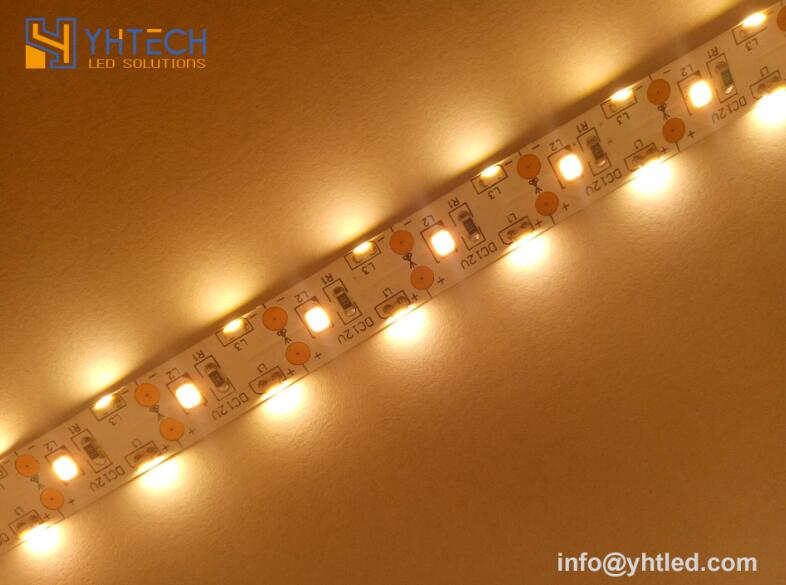

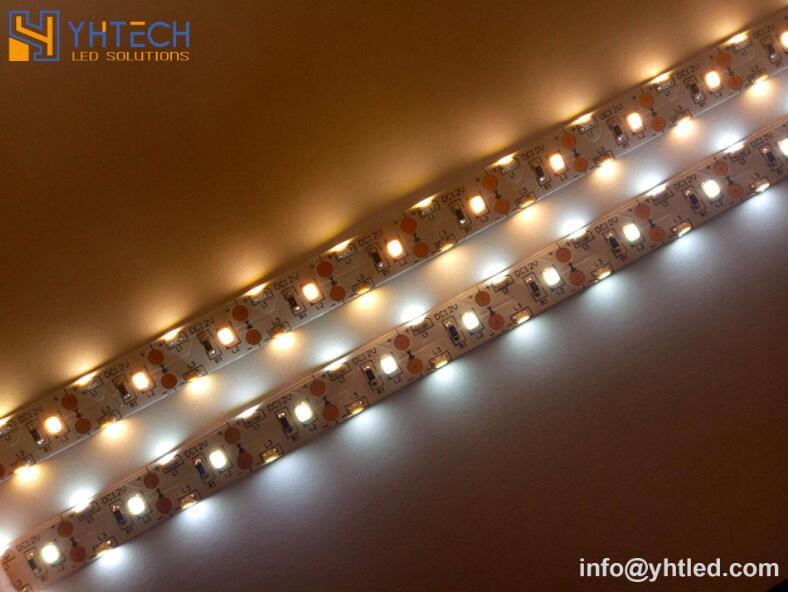

Widely view angle flexible led strip with 300° angle 2835+side view SMD3014 , 3 rows , DC 12V , 180 leds/m.

High CRI , 80Ra+ , 90Ra+

Special and good looking.

Parameter

 LED Qty   180 leds/m
 Power   16 w/m
 PCB Width   12mm
 Strip Length   5m/roll
 LED Brightness   22-24LM/LED
 Copper Thickness   2 OZ
 Input Voltage   12VDC
 CCT(K)   2700-2900K/2800-3200K/4000-4500K/5000-5500K/6000-6500K/10000-12000K/R/G/B/Y
 Luminous Flux (LM/M)   1440LM
 IP Rating   IP20 Non waterproof
  IP65 Silicon glue coated
  IP67 Silicon Tube coated
  IP68 Silicon Glue with Silicon Tube coated

Waterproof  Type

Packing Details

Carton Size (mm) Q’TY/Reel (M) Q’TY/CTN (reel) Gross Weight (kg) IP Grade
420*380*250 5 60 9 IP20
420*380*250 5 50 13 IP65
420*380*250 5 50 29 IP68

Application

• Business premises lighting
• Cabinet led lighting
• Linear led lighting
• Exhibition led lighting
• Display led lighting
• Home led lighting
• Office led lighting
• Led retail lighting
• Led kitchen lighting
• Led strip fixtures
• Decoration lamp for outdoor lighting
• ad. signs
